EV Charging Products Charging Sockets for all EVs Bolt.Earth Pro 4G 3.3kW
1 4

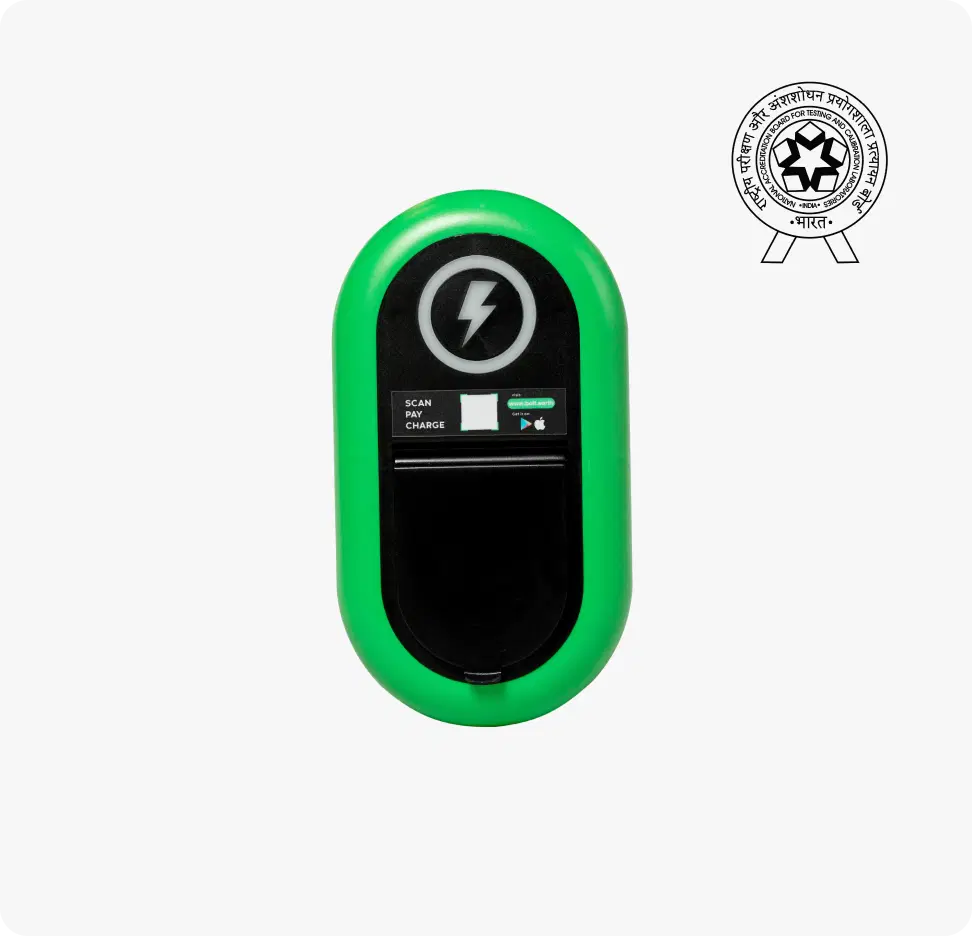

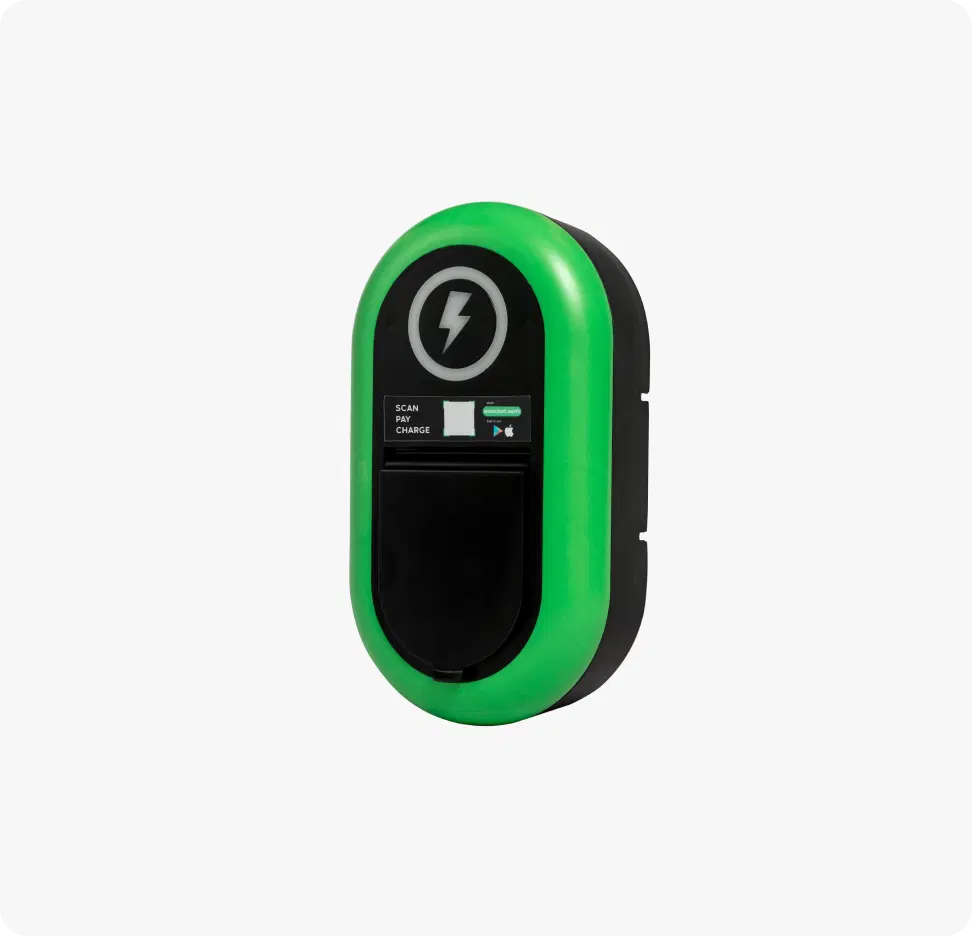

Bolt.Earth Pro 4G 3.3kW

Charging Sockets for all EVs

Safest AC charging socket for personal and commercial use.

Power Rating:

3.3kW

Compatibility:
2 Wheeler
3 Wheeler
4 Wheeler
Socket type:
Domestic 5/15 A

Domestic 5/15 A

Common brands compatible with this product:

brand brand brand brand brand
check

This charging socket is compatible with all EVs

₹14,499.00

sim

Built-in M2M SIM. Pay ₹850/year. First Year FREE

View full details

Dimensions

(Fits on Wall & Stand Mount)

Charger Dimensions

Certifications

NABL

NABL Certified

info

National Accreditation Board for Testing and Calibration Laboratories (NABL) is an autonomous body under the Quality Council of India (QCI) that ensures the technical competence and reliability

Bolt.Earth Pro Connected is a smart and connected EV charging point enabled with both BLE and 4G connectivity to provide a hassle-free and reliable charging experience for 2/3/4 wheeler EVs.

Suitable for public sharing and private parking alike, our device is engineered keeping safety in mind and provides an intuitive experience to all kinds of EV owners.

Output Power Rating:
3.3kW
Input Voltage:
220 - 240V AC
Output Voltage:
220 - 240V AC
Maximum Output Current:
16 A
Rated Frequency:
50 Hz

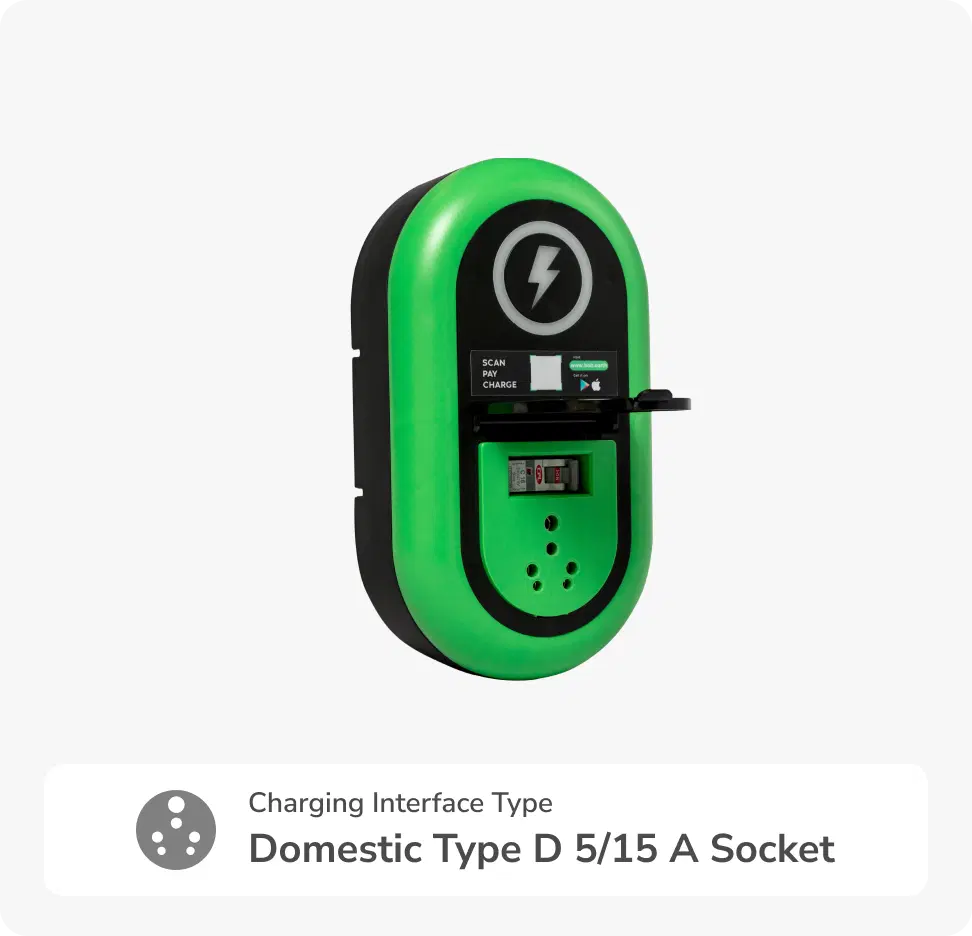

Charger Socket Type:
Type D - Domestic 5/15A Socket
Connectivity:
Wi-Fi and 4G
Charge Installation Type:
Wall Mount or Stand Mount
Dimension:
300mm * 165mm * 95mm
Weight:
1.5 kg
Weather Protection:
IP 44
OTA Support:
Yes
User Authentication:
QR code
Suggested Usage Type:
Public Use
Interoperability:
Supports OCPP 1.6J
Charging Progress Indication:
LED Indication
Warranty:
1 year Warranty Guide
Protection and Safety:
Auto Power Cut-Off, Power Theft Protection, Inbuilt Energy Measurement, Over & Under Voltage Protection, Charger Over temperature Protection, MCB for Over load Protection

Bolt.Earth Pro Connected is a smart and connected EV charging point enabled with both BLE and 4G connectivity to provide a hassle-free and reliable charging experience for 2/3/4 wheeler EVs.

Suitable for public sharing and private parking alike, our device is engineered keeping safety in mind and provides an intuitive experience to all kinds of EV owners.

Output Power Rating:
3.3kW
Input Voltage:
220 - 240V AC
Output Voltage:
220 - 240V AC
Maximum Output Current:
16 A
Rated Frequency:
50 Hz
Charger Socket Type:
Type D - Domestic 5/15A Socket
Connectivity:
Wi-Fi and 4G
Charge Installation Type:
Wall Mount or Stand Mount
Dimension:
300mm * 165mm * 95mm
Weight:
1.5 kg
Weather Protection:
IP 44
OTA Support:
Yes
User Authentication:
QR code
Suggested Usage Type:
Public Use
Interoperability:
Supports OCPP 1.6J
Charging Progress Indication:
LED Indication
Warranty:
1 year Warranty Guide
Protection and Safety:
Auto Power Cut-Off, Power Theft Protection, Inbuilt Energy Measurement, Over & Under Voltage Protection, Charger Over temperature Protection, MCB for Over load Protection

Dimensions

(Fits on Wall & Stand Mount)

Charging Station Size
NABL

NABL Certified

info

NABL

National Accreditation Board for Testing and Calibration Laboratories (NABL) is an autonomous body under the Quality Council of India (QCI) that ensures the technical competence and reliability

Why buy Bolt.Earth Pro 4G 3.3kW

  • Energy metering for consumption tracking
    Energy metering for consumption tracking
  • Electrical safety features
    Electrical safety features
  • Passive income by hosting public charging
    Passive income by hosting public charging
  • IoT enabled for discovery, authentication, power theft protection and billing
    IoT enabled for discovery, authentication, power theft protection and billing

Frequently Asked Questions

All Questions

The charger supports a maximum output of 3.3 kW, making it suitable for overnight or slow charging.
The charger includes overvoltage, undervoltage, surge, short-circuit, and overheating protection, ensuring safe operation.
The LED indicators provide real-time status updates on power, charging progress, connectivity, and errors, making it easy to monitor at a glance.
With real-time charging visibility, multi-user access control, and app-based monitoring, Pro 4G is ideal for shared charging setups such as apartments, offices, and commercial spaces.
The built-in 4G module provides uninterrupted connectivity, allowing users to monitor charging remotely, track energy consumption, and access real-time updates even in areas without Wi-Fi.
If 4G connectivity is weak, the charger can still be accessed via Bluetooth for local monitoring through the Bolt.Earth app.
Yes! The charger receives over-the-air (OTA) updates, ensuring it stays up to date with the latest features and security patches.
Pro and Pro 4G are both Level 1 smart chargers with a 3.3 kW output, but the key difference is in connectivity. Pro relies on Wi-Fi and Bluetooth, making it ideal for home users with a stable internet connection, while Pro 4G comes with built-in 4G connectivity, ensuring uninterrupted remote monitoring even in areas without Wi-Fi. This makes Pro 4G more suitable for apartments, offices, and shared spaces, where multiple users need seamless access without external internet dependency.
The Pro 4G comes with a 1-year standard warranty from the date of purchase. This covers manufacturing defects and issues arising under normal usage. For complete details, please refer to the warranty policy provided at the time of purchase or check with the official retailer.
It's a special type of SIM card that helps IoT devices like EV chargers, smart meters, or GPS trackers connect to the internet.
No, regular SIM cards are not compatible with IoT devices. It requires a specialised M2M SIM to ensure secure, always-on connectivity and enable remote monitoring and control, in line with telecom regulations. Also, these are more affordable than regular SIM cards!
To pay the yearly fee for the M2M SIM, you can contact our customer support team via phone at +91 8447746385 or email us at support@bolt.earth. We'll guide you through the payment process.
